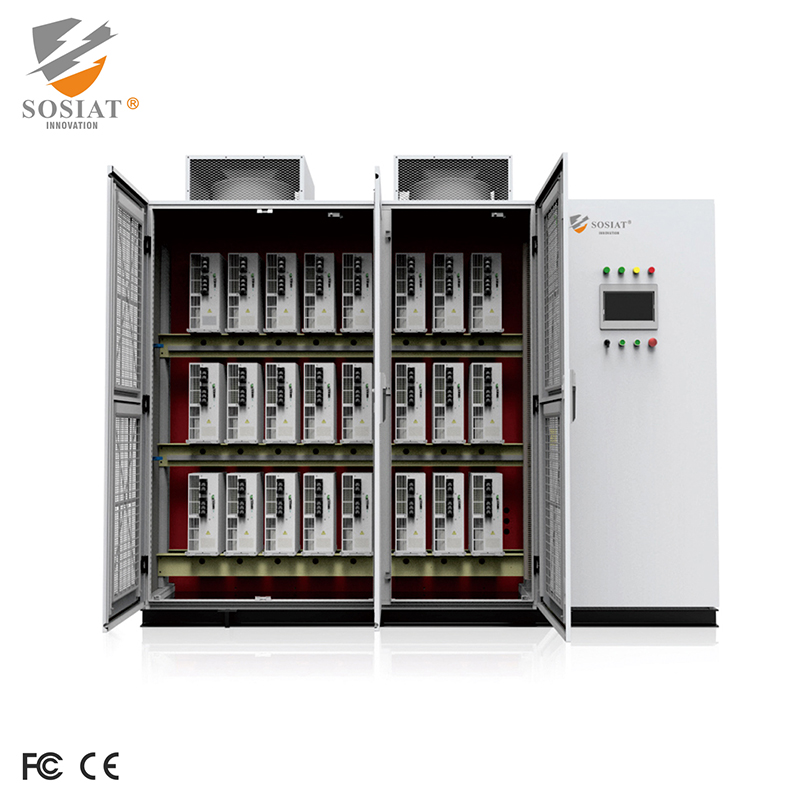

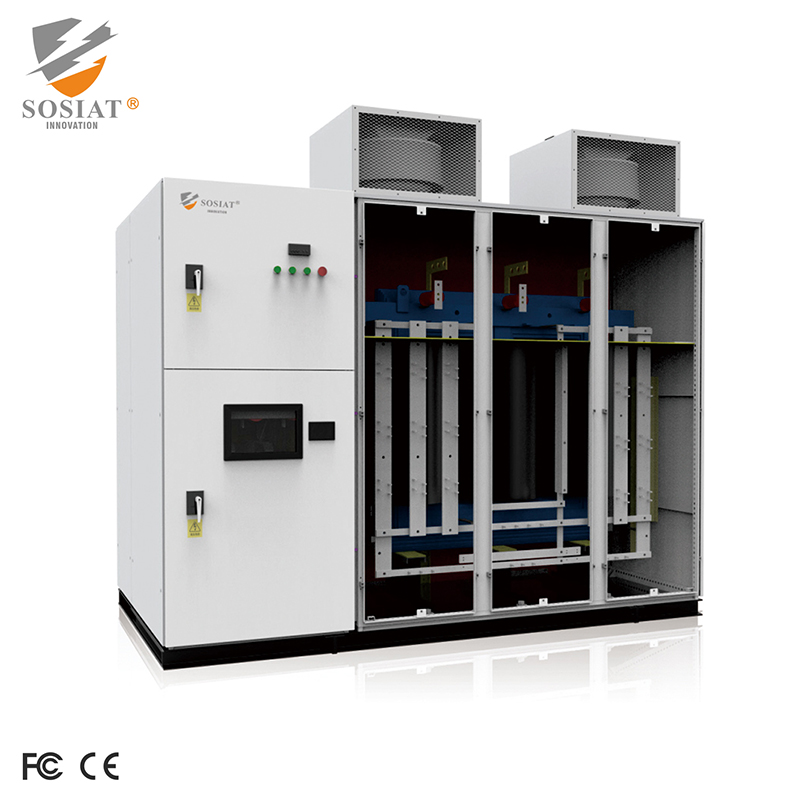

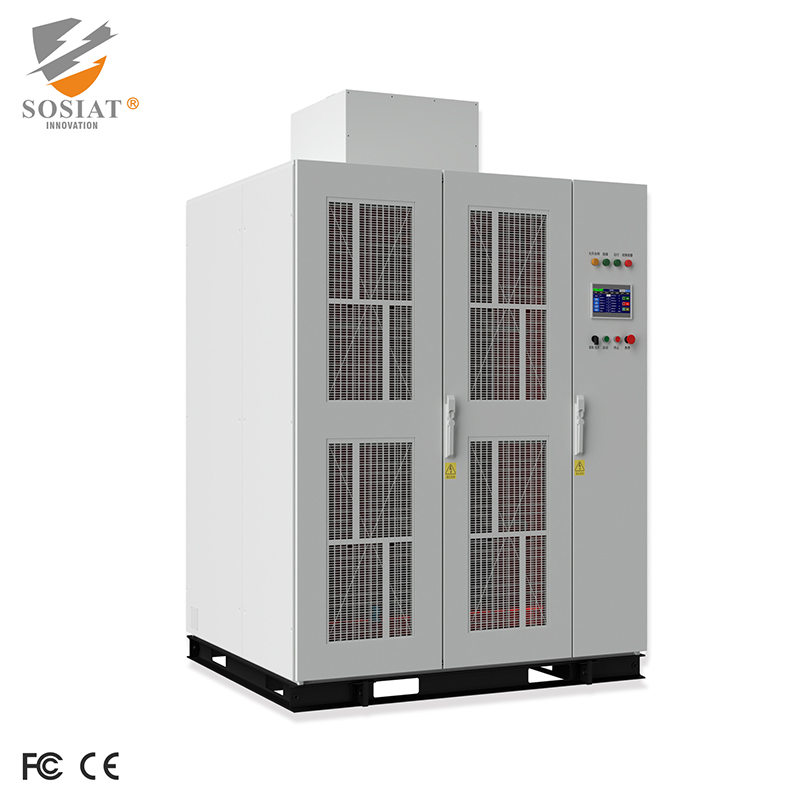

Medium Voltage Frequency Inverter
-

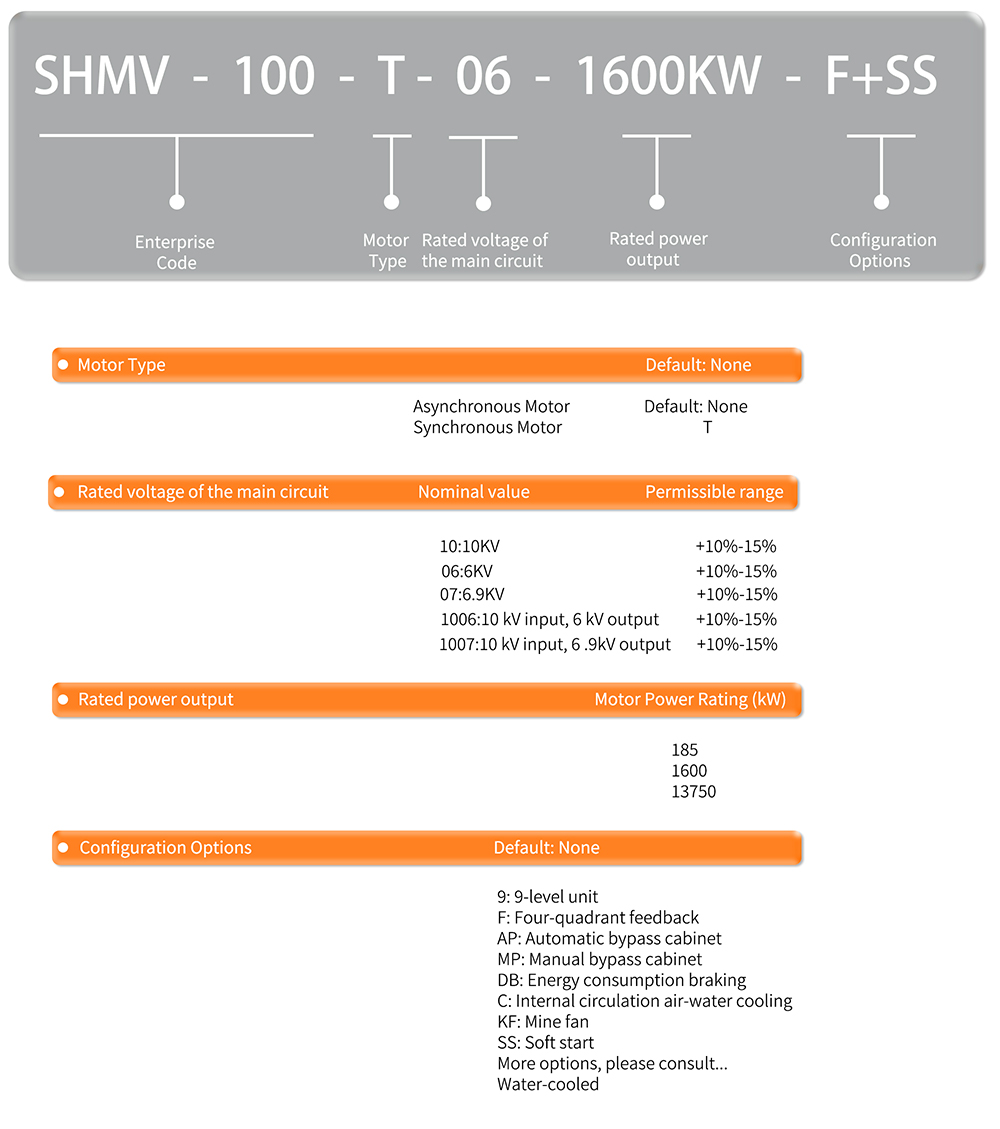

Model Meaning
- The dimensions and weight are for reference only; the exact dimensions and weight shall be as specified in the technical agreement.
- For standard series units, the input voltage is identical to the output voltage.
- The overall height does not include the height ofthe cooling fan; an additional 300 mm to 600 mm should be added for the fan height.
- The above overalldimensions and weight refer to the combined total ofthe control cabinet, power unit cabinet, and transformer cabinet
excluding the line-frequency bypass cabinet. - The minimum clearance reguirements are as follows: at least 1500 mm from the front ofthe equipment to the wal. at least 1000 mm fromthe rear, at least 800 mm from either side, and at least 1000 mm from the top of the equipment to the ceiling
- Standard overload capacity is 120%6 for 1 minute, allowed once every 10 minutes. Optional overload capacities of 125%, 150%, or 200% areavailable to meet different application requirements
- The applicable motor power rating may vary depending on the motor type and construction, and is provided for reference only.
Model selection
Model Motor Power(Kw) Frequency Converter Capacity(Kva) Weight(Kg) Cabinet Type Cabinet Dimensions(L×W×H) SHMV100-06-185kW 185 230 2650 Cabinet A1 1900X1500X2000 SHMV100-06-220kW 220 275 SHMV100-06-250kW 250 320 SHMV100-06-280kW 280 350 2760 SHMV100-06-315kW 315 400 SHMV100-06-355kW 355 450 2930 SHMV100-06-400kW 400 500 SHMV100-06-450kW 450 560 3160 SHMV100-06-500kW 500 630 3360 SHMV100-06-560kW 560 700 3985 Cabinet B1 2700X1500X2000 SHMV100-06-630kW 630 800 4042 SHMV100-06-710kW 710 900 4160 SHMV100-06-800kW 800 1000 4382 SHMV100-06-900kW 900 1150 4590 SHMV100-06-1000kW 1000 1250 4792 SHMV100-06-1120kW 1120 1400 4985 SHMV100-06-1250kW 1250 1600 5285 SHMV100-06-1400kW 1400 1800 6120 Cabinet C1 3033X1650X2200 SHMV100-06-1600kW 1600 2000 6390 SHMV100-06-1800kW 1800 2250 6745 SHMV100-06-2000kW 2000 2500 7090 SHMV100-06-2250kW 2250 2800 9220 Cabinet D1 5400X1400X2400 SHMV100-06-2500kW 2500 3200 9570 SHMV100-06-2800kW 2800 3500 10070 SHMV100-06-3200kW 3200 4000 10670 SHMV100-06-3600kW 3550 4500 11240 SHMV100-06-4000kW 4000 5000 12500 Cabinet F1 6850X1400X2400 SHMV100-06-4500kW 4500 5650 13000 SHMV100-06-5000kW 5000 6300 14000 SHMV100-06-5600kW 5600 7000 17755 Cabinet G1 8200X1600X2400/2600 SHMV100-06-6300kW 6300 8000 18795 SHMV100-06-6600kW 7100 9000 19450 SHMV100-10-185kW 185 230 2220 Cabinet A 2700X1500X2000 SHMV100-10-220kW 220 275 2240 SHMV100-10-250kW 250 320 2260 SHMV100-10-280kW 280 350 2286 SHMV100-10-315kW 315 400 2316 SHMV100-10-355kW 355 450 2346 SHMV100-10-400kW 400 500 2383 SHMV100-10-450kW 450 560 2433 SHMV100-10-500kW 500 630 2483 SHMV100-10-560kW 560 700 2593 SHMV100-10-630kW 630 800 2719 SHMV100-10-710kW 710 900 2875 SHMV100-10-800kW 800 1000 3062 SHMV100-10-900kW 900 1150 3192 Cabinet B 3033X1650X2200 SHMV100-10-1000kW 1000 1250 3258 SHMV100-10-1120kW 1120 1400 3409 SHMV100-10-1250kW 1250 1600 4390 SHMV100-10-1400kW 1400 1800 4648 SHMV100-10-1600kW 1600 2000 4948 SHMV100-10-1800kW 1800 2250 5270 SHMV100-10-2000kW 2000 2500 5604 Cabinet C 4000X1500X2200 SHMV100-10-2250kW 2250 2800 5916 SHMV100-10-2500kW 2500 3150 7990 SHMV100-10-2800kW 2800 3500 8150 SHMV100-10-3200kW 3200 4000 8700 SHMV100-10-3600kW 3550 4500 8820 Cabinet D 6925X1500X2455 SHMV100-10-4000kW 4000 5000 11990 SHMV100-10-4500kW 4500 5600 12500 SHMV100-10-5000kW 5000 6300 13300 SHMV100-10-5500kW 5600 7000 13800 SHMV100-10-6300kW 6300 8000 18410 Cabinet E 9100X1650X2455 SHMV100-10-7100kW 7100 9000 19700 SHMV100-10-8000kW 8000 10000 20400 Cabinet F 9200X1700X2800 SHMV100-10-9000kW 9000 11250 22500 SHMV100-10-10000kW 10000 12500 27120 Cabinet G 12200X1600X2455 SHMV100-10-11000kW 11000 13750 28860 Primary circuit diagram
Harmonic-Free Solution

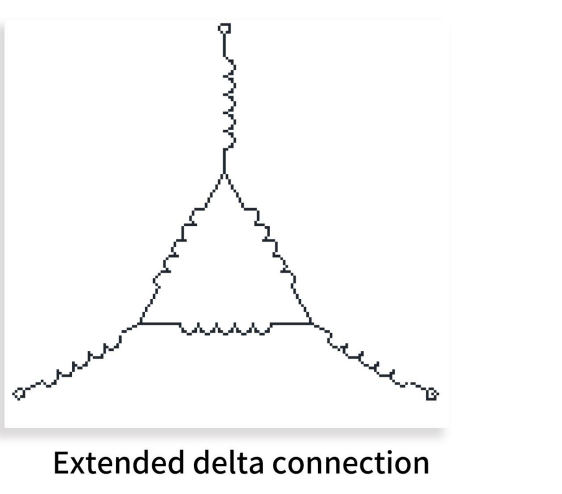

The secondary winding of the phase-shifting transformer employs an extended delta connection, altering the phase angle of eachsecondary winding per phase.
- This mitigates the impact of harmonics generated by the unit on the power grid.
- Taking two units connected in series as an example for analysis: the phase-shift angle o = 60°/2 = 30°

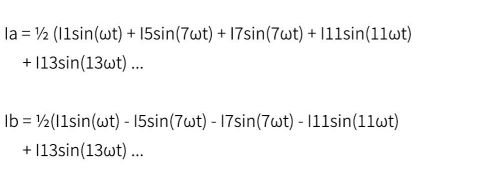

- The current is referred to the primary input side and expanded into a Fourier series:
The 5th, 7th, and 11th harmonic components have phase angles differing by 180°, and through phase-shifting rectification technology, these harmonics cancel each other out.
Take the input phase-shifting transformer of a 10kv variable frequency drive (VFD) as an example. its primary winding is rated at10kv, while the secondary side consists of 24 three-phase windings, each with an output voltage of 690v, Every winding adoptsan extended delta connection and has a phase shift angle diference of 7.5°, This configuration can efectively eliminate harmonics below the 47th order, which means that 48-pulse rectification is capable of suppressing harmonics lower than the 47thorder (calculated by the formula 6n-1, where n refers to the number of units per phase).
Industry Applications
Power Generation:
induced dralt ans, primany/secondary air fans, circulating water pumps, boilerfeed pumps,condensate pumps, slurry circulation pumps, vertical coamills
Oil, Gas & Chemicals:
Electric submersible pumps (ESPs),injection pumps, crude oiltransfer pumps, pipeline compressors, LNG compressors, air separation compressors,syngas compressors, ammonia refrigeration compressors "ice machines", product gas compressors, propylene compressors,carbon dioxide com.pressors
Mining:
Conveyor belts, main mine ventilation fans, methane drainage pumps, slury pumps, crushers, semi-autogenous grinding (sAG) mills, ballmil.high-pressure roller mills
Cement:
Raw mil circulating fans, coal millexhaust fans, cement mil exhaust fans, kiln inlet exhaustfans, kiln outlet high-temperature fans, kiln tail exhaustfans, clinker cooler fans, coal mills, roller presses
Metallurgy
Dust collection fans, sintering main induced draf fans, blast furace blowers,circulating water pumps,descaling pumps,slag granulation pumps, airseparation compressors, grinding mills, stamping presses, bidirectional energy recovery compressors
Municipal/Water Treatment:
Raw water intake pumps, water supply pumps, primany lif pumps,secondary clear water pumps,seawater desalination pumps,booster pumps,irigation pumps
Waste-to-Energy:
Various standard fans and pumps

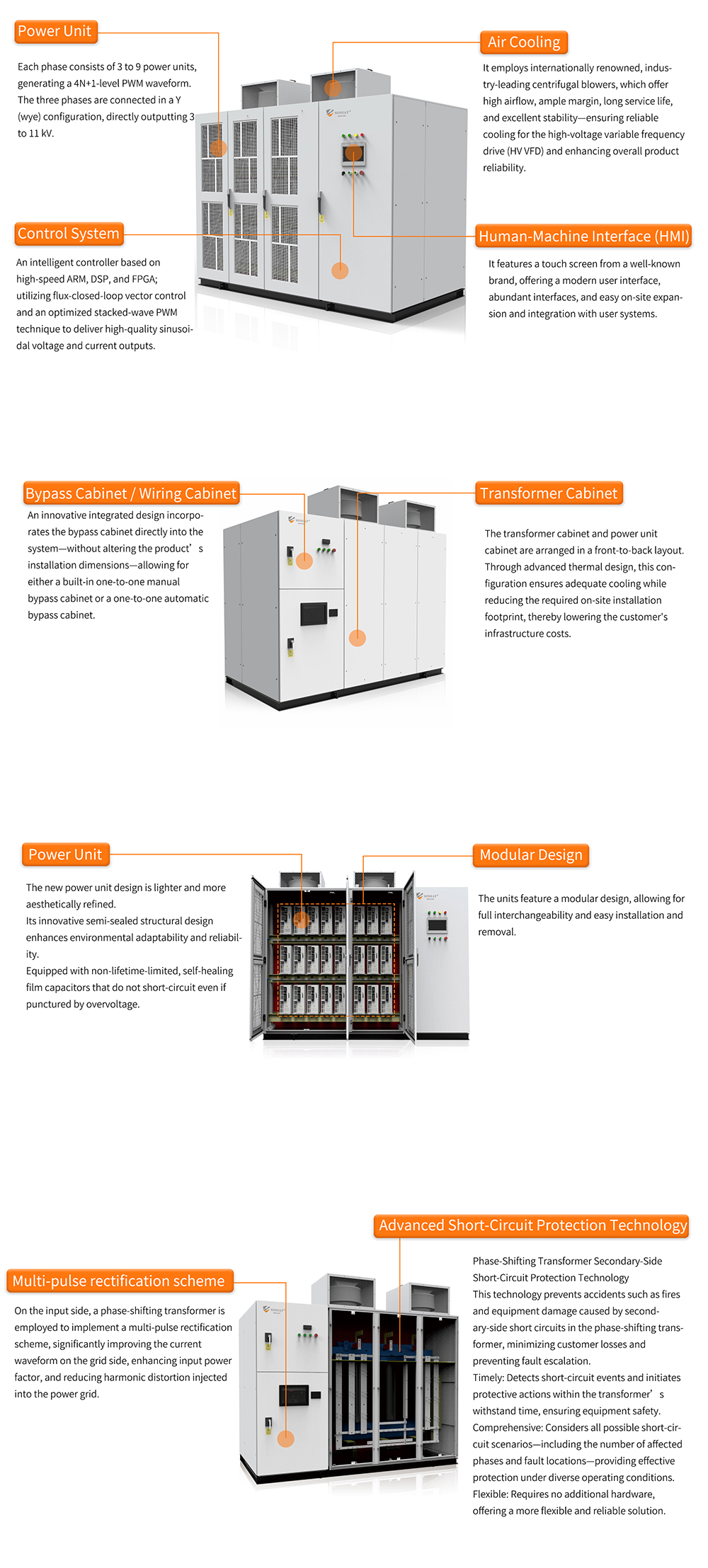

Main Features
- Low-voltage ride-through (LVRT)
- Auto-restart after power loss (within 20 seconds)

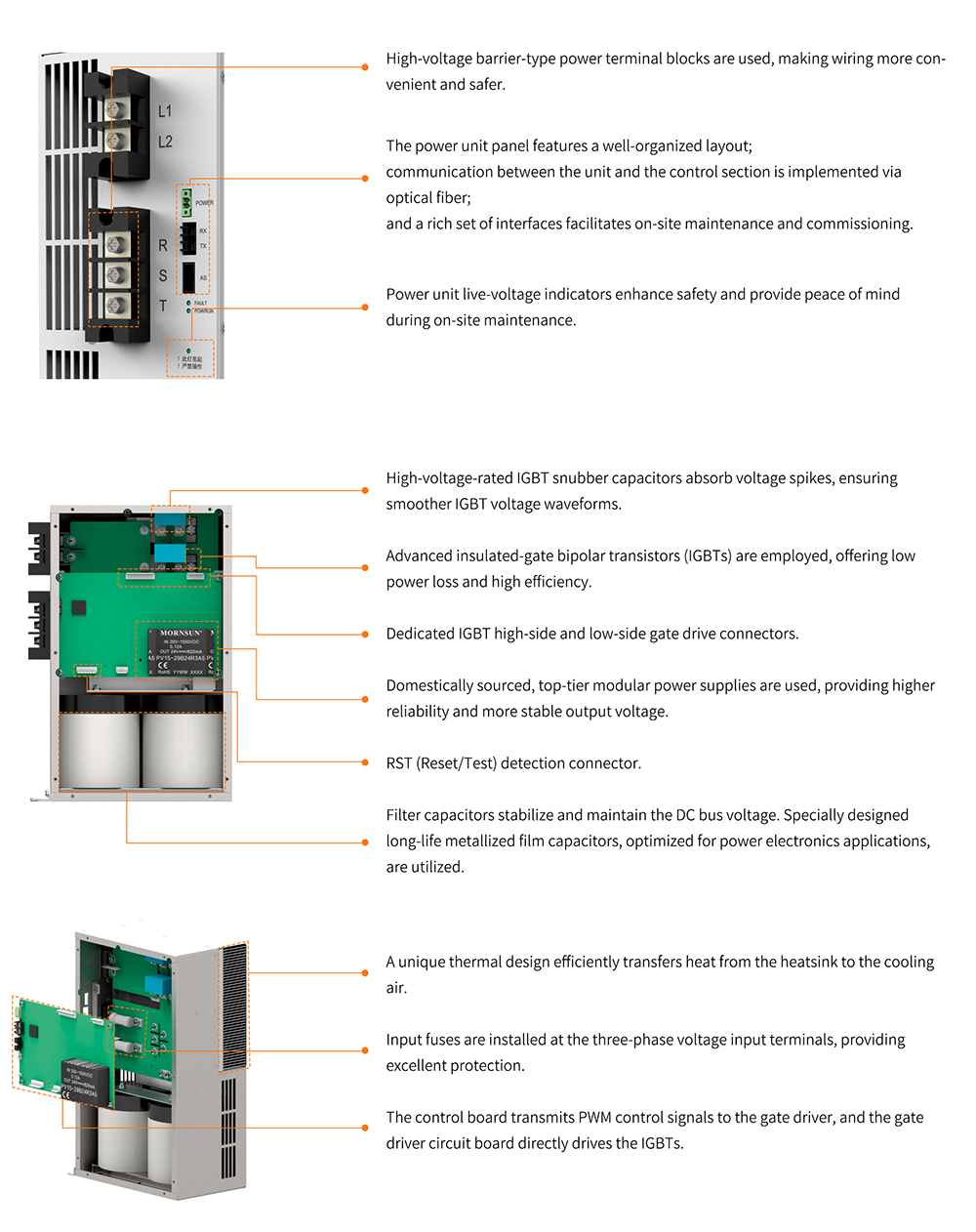

- Power cell bypass function
- Flying-start (spin-start) capability
- Synchronous switching function
- Redundant control power supply (optional)
- Redundant power unit design (N+l, optional)
- Redundant coolingfans (optional)
- Other functions customizable per customer requirements
- Dedicated control function module for mills
- Magnetizinginrush current suppression cabinet
- One-drive-one manual bypass cabinet
- One-drive-two manual bypass cabinet
- One-drive-one automatic bypass cabinet
- One-drive-two automatic bypass cabinet
- One-drive-one synchronous switching cabinet
- Output reactor cabinet
- lsolation cabinet
