SHRMV-YTG Medium voltagesoft starter Integratedcabinet
Structural Features
Structural Features
The device consists of a handcart type vacuum circuit breaker, HPMV-YTG soft starter, and a bypass vacuum contactor
The cabinet is made of 2mm aluminum-zinc steel plate, processed by CNC numerical control equipment, and connectedwith high-strength bolts.The overall protection level is lP4x;
The cabinet is divided into four separate functional unit compartments, followed by the trolley compartment room, the high、voltage bus room, the high voltage cable room, and the high voltage soft starter room;
The integrated cabinet design of high-voltage switch, soft-up cabinet and bypass cabinet is small in size, saves the spaceof the distribution room, and has the same power: of the distribution room, and has the same power;
The product is 30%-50% of the soft starter of other methods. , And other equipment can be perfectly combined andcabinetinstallation:
lt is especially suitable for the technical transformation and replacement of the limited on-site location and the start-upproducts of similar manufacturers.(Switch cabinet split desian is also optional)
Applications
Widely used in power systems, metallurgy, mining, petroleum, chemical, water treatment and other industries ofhigh voltage squirrel-cage AC asynchronous & high-voltage synchronous motor.As a high voltage motor soft startsoft stop and control, protection and so on. Voltage range 3.3~10KV Controlled motor, power 220KW~5600KW.
Performance and parameters
- Control mode: kick start, voltage ramp, constantcurrent, speed control (Optional).
- Starting mode: soft start, straight up, soft stop, free stop.
- Operation mode: This cabinet, external control,communication remote control (optional).
- Communication mode:RS 485 interface: Modbusprotocol and Profibus protocol (optional).
- Analog output: motor operating current, signal0-10Vor4-20mAor 0-20mA.
- Initial voltage:10% to 50%(expandable to 5%to 80% Un).
- Current limiting multiple:100% to 400% In(expandableto 500%In). to 500% In).
- Start,stop time:1~30S(expandable to 90S).
- Startjump: current,70%-700%In (kick time 0~10S.)
- Parameter settings:1--control panel button,2--backgroundcommunication settings.
- LCD display: operating current, number of starts, runningtime and failure
- Information and other parameters, default language: Chinese(English),German,French,and Western.
- *Noise:<80db.
- Continuous start interval: In the ambient temperature greaterthan 40 “C, starting current is large at 400% ln, the interval is notless than 30 minutes. When the temperature is low when thestarting currentis relatively small, the interval can be properlyreduced, but at least it is 15 minutes.
- Cooling method: Natural cooling.
- Operating power:AC220V50Hz600VA(Special requirementsrequire another put forward).
- Main circuit power frequency withstand voltage: 42KV/1 minute(except power unit).
- Protection Mode: Compound (see Protection Features)Protection class:lP42(lP54 optional if special requirement).
Working environment and conditions
Air temperature around the equipmentis running:-10°C-50°CWhen storing:-20°C-70°C(stated whenorderingin special circumstances).
The relative humidity of the air around the equipment: no morethan 95% at +50°C.Atlower temperatures,greaterrelative humidity is allowed.
The environment surrounding the equipment is free ofexplosion hazards and corrosive gases.Pollution level: ≤ 3 (up to 4).
Altitude:< 1000m(expandable to 4000m)
Vibration: Vibration conditions permitted at the installation site:The vibration frequency is 10Hz to 150Hz,and the vibrationacceleration is not more than 0.5m/s2.
Main power supply:10KV/50Hz three-phase voltage continuousfluctuation does not exceed-15%~+10%.
The frequency fluctuation does not exceed +5Hz; the rate ofchange of frequency does not exceed +1% per second. changeoffrequency does not exceed +1% per second.
Note: The black font part of the performance and parameters and working environment and conditions is a standard configurationlf there is any other requirement in the parentheses, the part in the text will be in the contract when ordering.

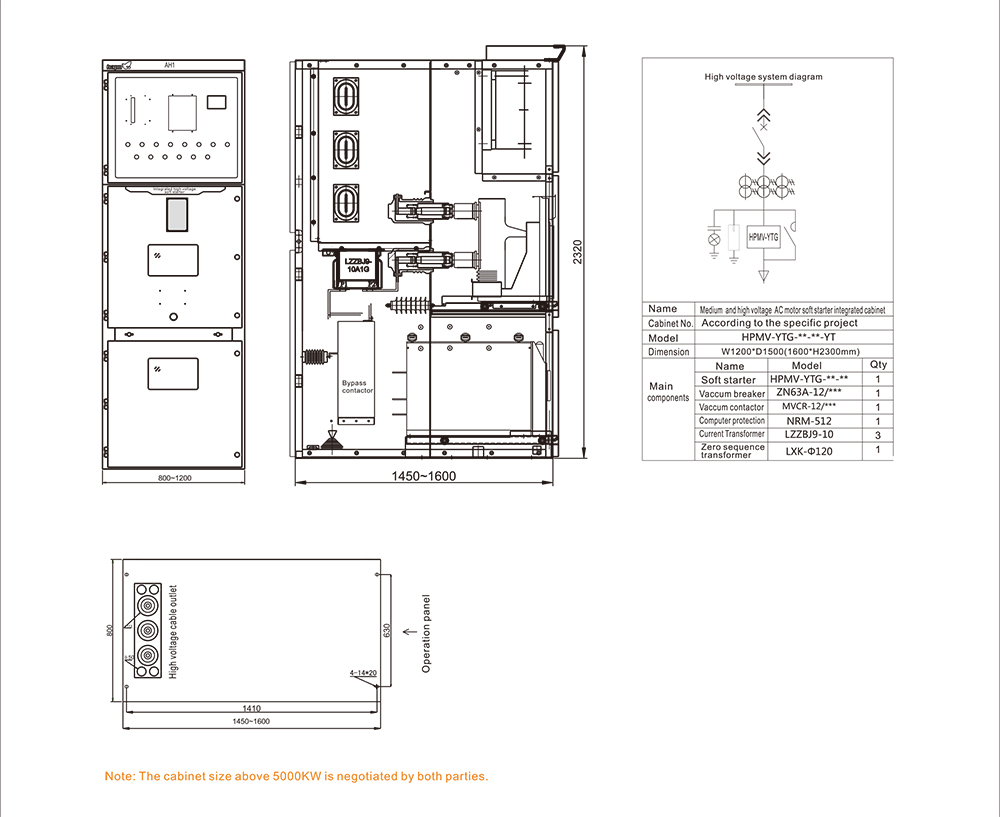

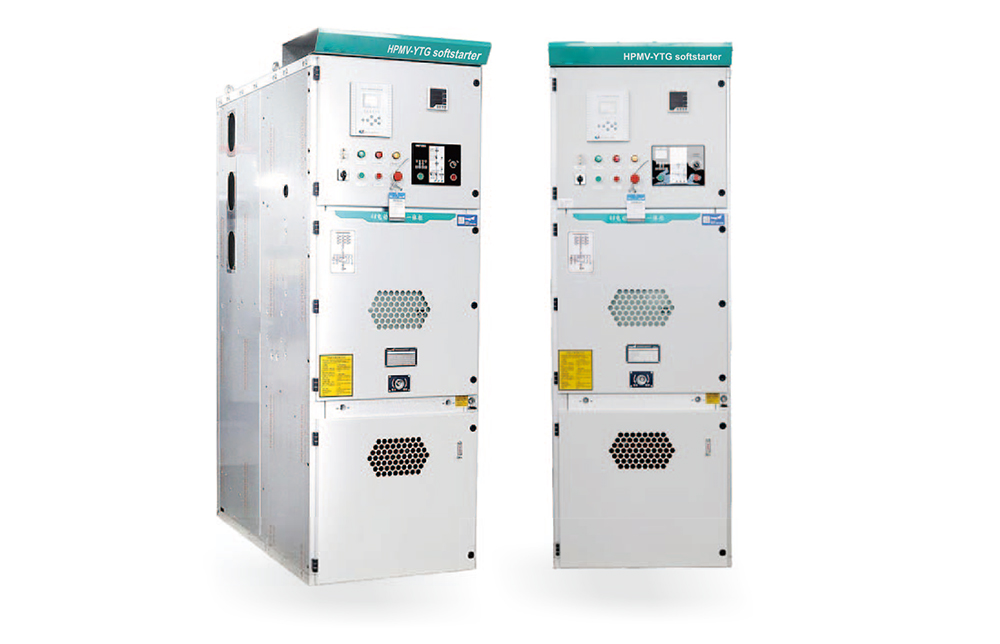

High voltage soft starter integrated cabinet system diagram and appearance
Product selection & Size
The 2.3KV voltage level can be replaced with the product of 3.3kv voltage grade; 4.16kv and 6.6kv voltage grade can use 6kv voltage gradeProduct replacement. The soft stater must be selected based on the rated current on the motor nameplate (even if the motor is not running atfull load). table The corresponding KW value given in the above is for reference only. But pay attenion to diferent vollage levels when themotor power is the same when the curent is diferent, select type No. Please calculate the curent according to the power before confirming
| WXDXH (mm) | ||||
| SHRMV-YTG-3.3-50 | 3.3 | 50 | 220 | 1000X1500X2300Standard; 800X1500X2300Customized |
| SHRMV-YTG-3.3-100 | 3.3 | 100 | 450 | |
| SHRMV-YTG-3.3-150 | 3.3 | 150 | 630 | |
| SHRMV-YTG-3.3-200 | 3.3 | 200 | 900 | 1000X1500X2300 |
| SHRMV-YTG-3.3-300 | 3.3 | 300 | 1250 | 1000X1500X2300 |
| SHRMV-YTG-3.3-400 | 3.3 | 400 | 1800 | 1200X1500X2300 |
| SHRMV-YTG-6-50 | 6 | 50 | 400 | 1000X1500X2300Standard; 800X1500X2300Customized |
| SHRMV-YTG-6-100 | 6 | 100 | 800 | |
| SHRMV-YTG-6-150 | 6 | 150 | 1250 | |
| SHRMV-YTG-6-200 | 6 | 200 | 1600 | 1000X1500X2300 |
| SHRMV-YTG-6-300 | 6 | 300 | 2400 | 1000X1500X2300 |
| SHRMV-YTG-6-400 | 6 | 400 | 3200 | 1200X1500X2300 |
| SHRMV-YTG-10-50 | 10 | 50 | 690 | 1000X1500X2300Standard; 800X1500X2300Customized |
| SHRMV-YTG-10-100 | 10 | 100 | 1400 | |
| SHRMV-YTG-10-150 | 10 | 150 | 2000 | |
| SHRMV-YTG-10-200 | 10 | 200 | 2800 | 1000X1500X2300 |
| SHRMV-YTG-10-300 | 10 | 300 | 4000 | 1000X1500X2300 |
| SHRMV-YTG-10-400 | 10 | 400 | 5600 | 1200X1500X2300 |
Note:
The above are some typical product data.The specific parameters are based on theactual product.
Technical indicators
| General information | |
| Main power suppl | Voltage:2300V,3300V,4160V,6000V~6900V,10000V~11000V,+10%-15% |
| Insulation leve | For 2300V,Insulation voltage as 6900V |
| For 3300V,Insulation voltage as 9900V | |
| For 4160V,Insulation voltage as 12,500V | |
| For 6000~6900V, Insulation voltage as 19,500V | |
| For 10000~11000V,Insulation voltage as 32,500V | |
| Frequency | 45~65Hz(frequency automatic adjustment) |
| Control voltage | 110~230(Vcustomized)+10%-15% |
| Control input & output voltage | Same with control voltage or customized: 24~230VAC/DC |
| Load | 3 phase 3 wire squirrel cage induction motor |
| Working parameters | |
| Soft starter flc | The rated current of the starter can be found in the selection guide. |
| Motor fla | The full load current of the motor can be selected between 33% and 100% of the start er FLC. |
| Pump control curve | 6 curves are optional to prevent overpressure during pump start and water hammer effect during stop |
| Pulse start | With 70~700% FLA current pulse, adjustable pulse time:0~10 second s for starting high static friction load |
| Initial voltage(*) | Can be set to 10-50% Un(10~80% Un can be provided with customized) |
| Current limit(*) | Can be set to 100-400% of motor FLA(can be extended to 100-500%) |
| Start ram p up time(*) | 1-30 second s adjustable(can be extended to 1~90S) |
| Stop ram p down time(*) | 1-30 seconds adjustable(can be extended to 1~90S) |
| Double adjustment | About the start voltage, current limit, acceleration, deceleration time and dual start/ stop parameter settings of the moto r FLA |
| Speed feedback and linear increase | 12 curves selectable to control motor speed linear gain by speed feedback |
*Extensible range details contact factory
| Motor protection | |
| Start times limit | The maximum allowable start times in the set start cycle: 1 to 10 starts in the 1 to 60 minute start cycle |
| Start prohibited | After the" start over frequency" indication is given, the prohibited start time is adjustable from 1 to 60 mins, limit the restart |
| Long start time(stall protection)(*) | If the motor has not reached the full be am within the set maximum start time 1~30 seconds (extended 1~90 seconds), |
| the starter trip protection. | |
| Electronic fuse | When the current reaches 850% FLA when starting, the current reaches 200%~850%FLA, and the starter trips in one cycle. |
| Electronic overload(It) | Can be set at 75%~150%FLA, the overload curve can be selected by setting the trip time, at 500% FLA for 1~10S can be set |
| Under current | Main current drops below 20%~90% FLA, time delay is 1-40 seconds, starter trip protection Main current drops below 20%-90%FLA, time delay is 1~40 seconds, starter trip protection |
| Under voltage(**) | Main voltage drops below 50%~125% Un. time del ay 1-10 second s Starter trip protection |
| Over voltage | The main voltage rises to more than 110%-125%, the time delay is 1-10 seconds, and the starter trips protection. |
| Phase loss(low/ high frequency) | The start er trips when the mains 1 to 2 phases are missing or the frequency deviates from the normal frequency ±5 Hz. |
| Phase sequence | The starter trips when the phase se quence is incorrect. |
| Wrong connection/ shorted SCR | If the motor fails to properly connect to the starter, or if there is a thyristor short-circuiting the starter, start prohibited. |
| Heatsink overtemperature | When the heat sink temperature is higher than 85°C, the starter trips. |
| External fault | The starter trips after 2 seconds when the external fault contact closes. |
| External fault2 External fault2 | The starter trips after 2 seconds when the external fault contact closes. |
| Current unbalance | When the main loop current imbalance exceeds the set value and exceeds the delay time, the start er trip protection |
| Ground current fault | When the ground current exceeds the set value, and the delay time exceeds the delay time, the start er trip protection. |
| No start signal of main power(***) | When start er is connected to the 3phase main voltage and no soft start signal is added for over 30S, the starter trip protection is applied. |
| Can't switch to bypass faul | When start er starter motor enters full pressure, it cannot switch to by pass and start er trip protection. When starter starter motor enters full pressure, it cannot switch to bypass and starter trip protection. |
