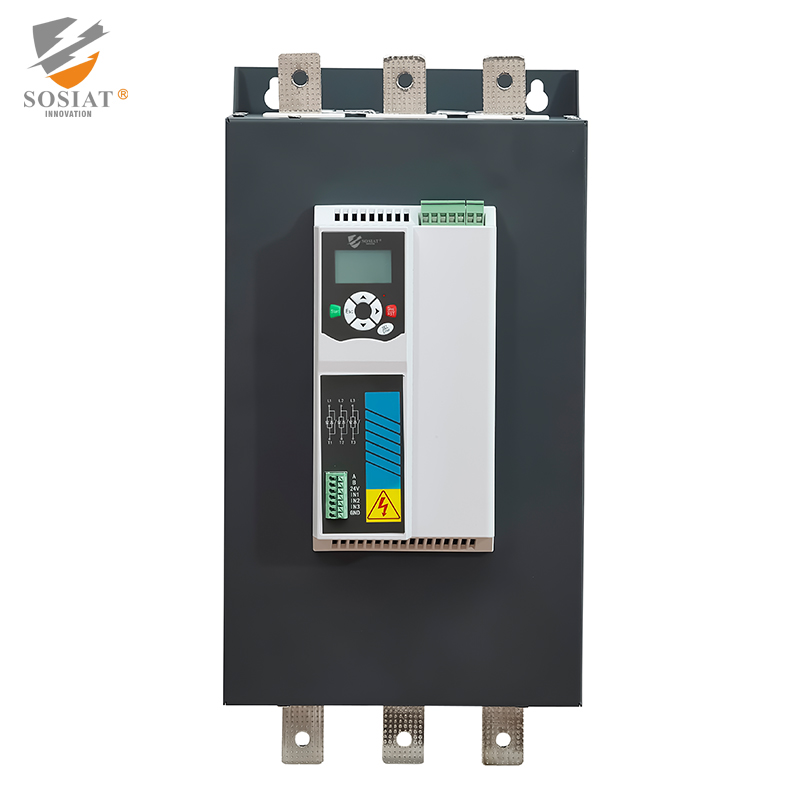

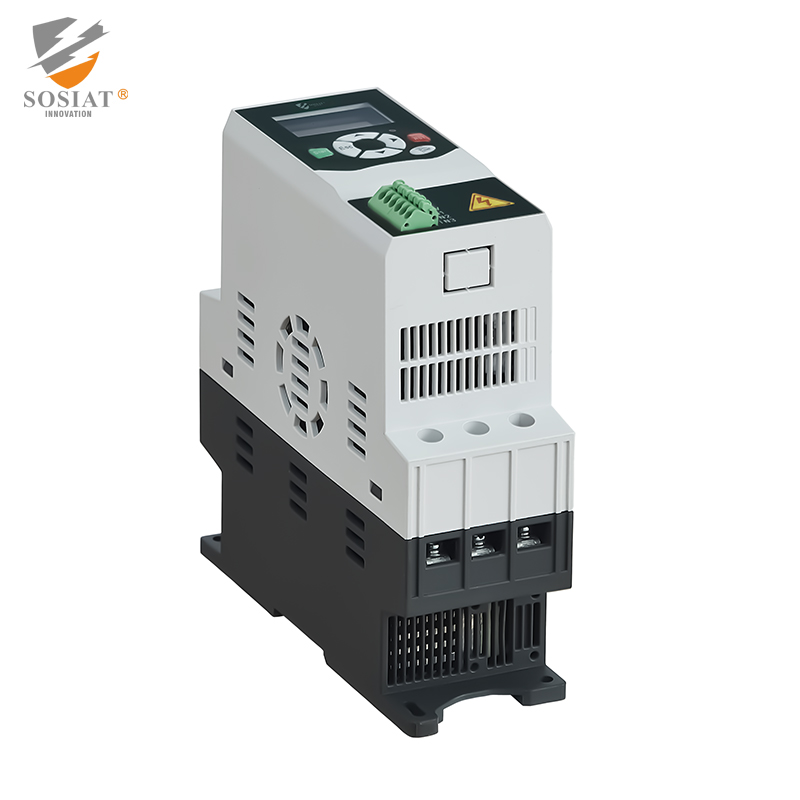

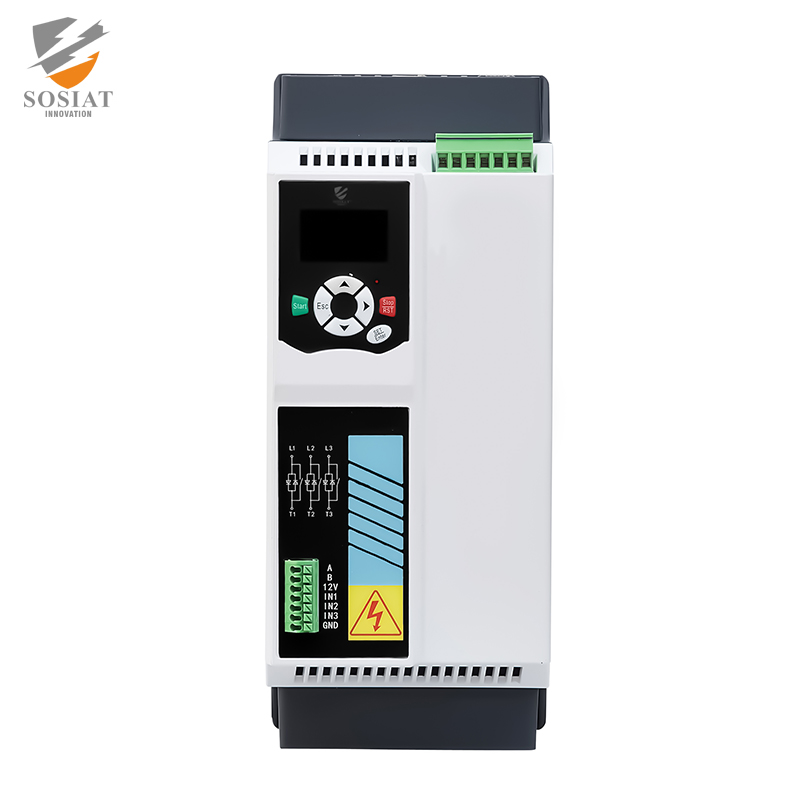

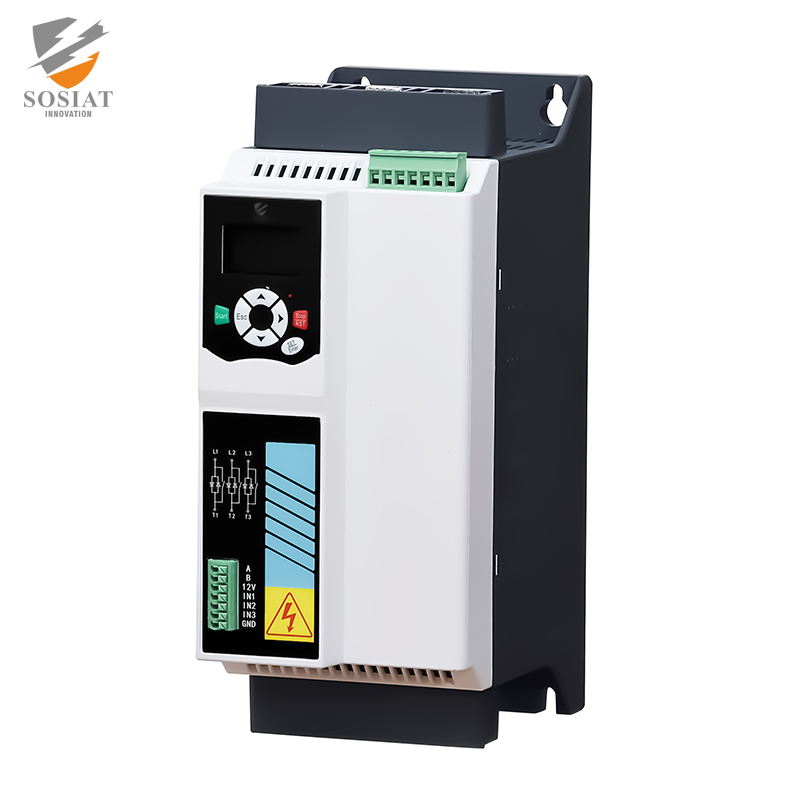

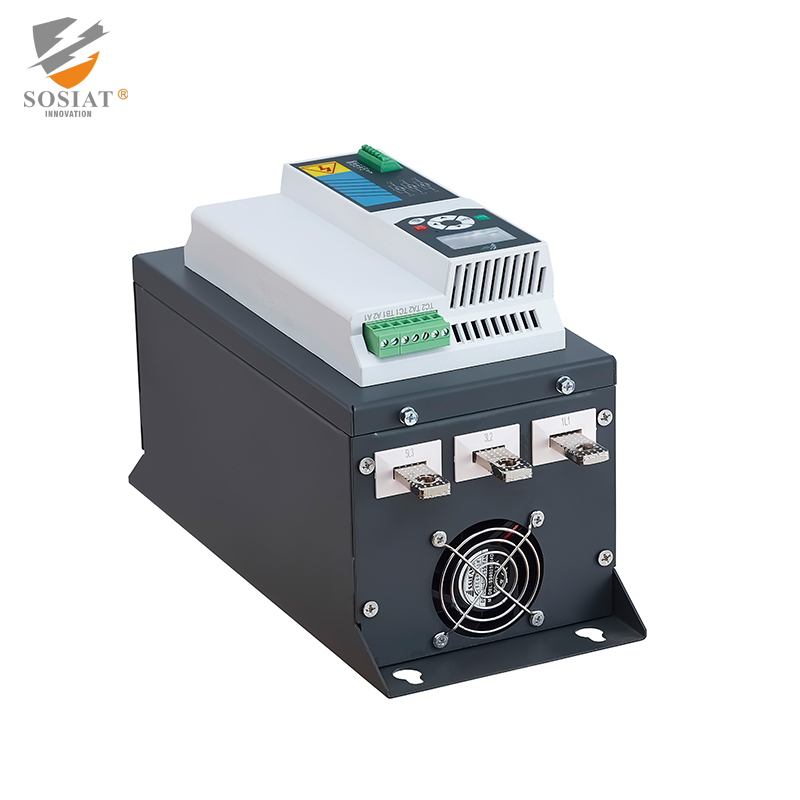

SHR6E Intelligent Motor Soft Starter

Model Selection

Note:
1. Rated voltage of the main power supply: 22: 220V; 40: 400V;
2. Rated current: 1.5~150A;
3.Control power supply voltage: A: 100~240VAC; B: 24VDC;

Feature Description

More Control

• The SHR6E soft starter/cabinet adopts the new generation of soft starting technology.The adaptive control enables the control of the motor's acceleration curve anddeceleration curve to an unprecedented level.
• The soft starter reads the data of the motor during the starting and stopping processes.and then adjusts it to achieve the best effect. Just select the curve that is most suitablefor your load type, and the soft starter will automatically ensure that the load isaccelerated in the smoothest possible way.

Easy to Use

• The SHR6E is easy to use, whether duringinstallation, commissioning, operation,or troubleshooting.
• The quick - setting feature allows the machine to start running promptly. The informationscreen can display various operating data and show trip messages in text, preciselyindicating where the problem lies.
• You can choose to route the control incoming wires from the top, bottom, or left side,which is very flexible. The unique cable access and fixing devices make the installationfaster, neater, and more aesthetically pleasing. You'll soon experience how simple it is touse the SHR6E

Product Features

The SHR6E is a highly intelligent, reliable, and user - friendly soft starter. The newly designedfunctions of the SHR6E, which are used for quick setting or more personalized control, are aperfect solution. lts features include:

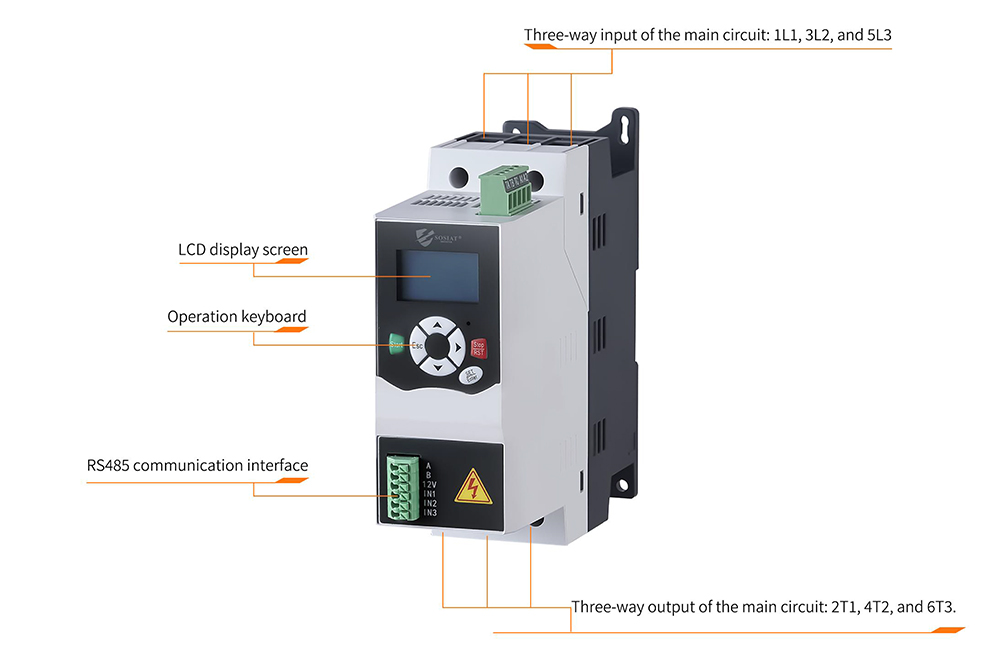

• A large LCD screen that can display feedback information in both Chinese and English, and other languages can be customized
• A remotelyinstallable operation panel.
• Intuitive programming.
• Advanced starting and stopping control functions
• A series of motor protection functions.
• Extensive performance monitoring and event recording.
• Built -in bypass, with a small size and low heat generation.
• After starting is completed, it switches to the built - in contactor, resulting in low power consumption.
• When used in water pumps, the water output is the same as that under the power frequency.
• It has a simulation design, allowing the test of the control circuit without a load.

Multiple Starting Control Modes

Multiple starting modes are available to meet various load requirements. Users canselect the appropriate starting mode according to their specific load conditions.

The SHR6E simplifies the installation and operation of the motor starting system,thereby reducing installation costs and shortening the installation time.

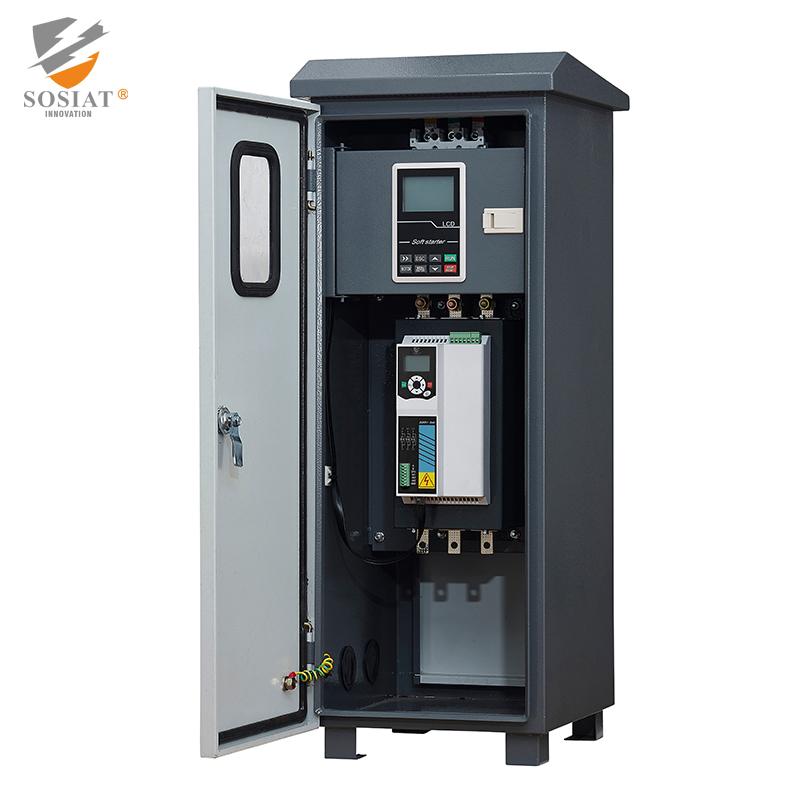

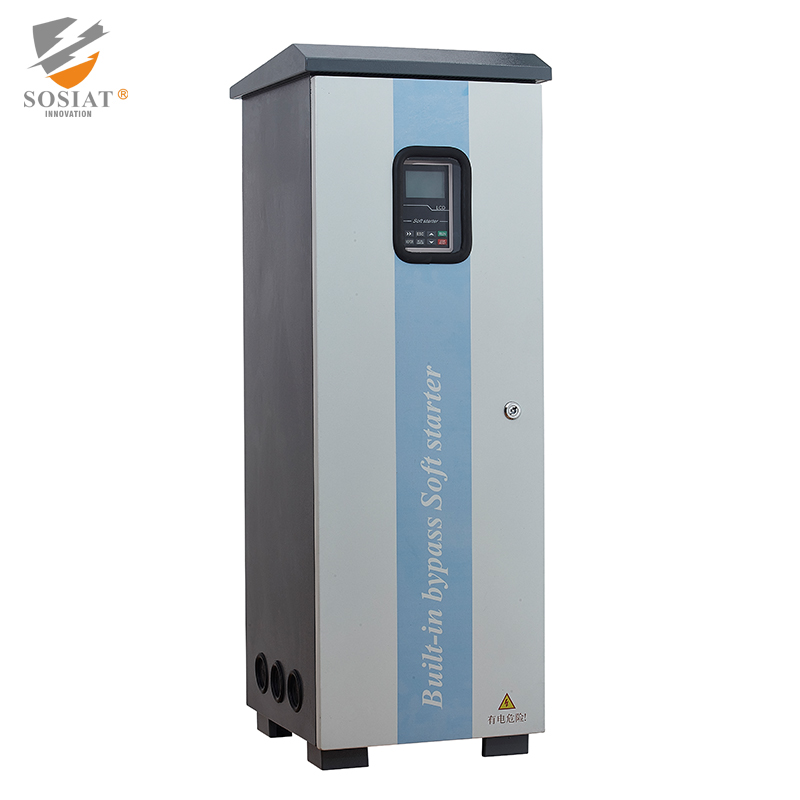

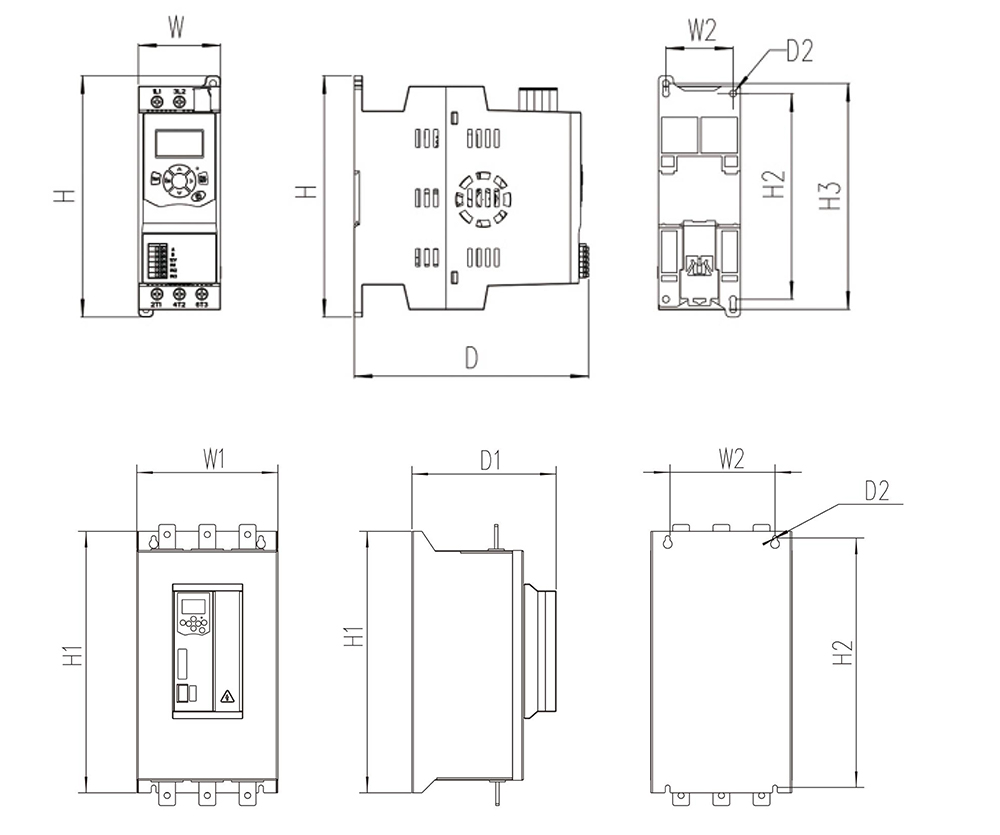

Dimensions of the soft starter cabinet

Function

Selectable soft start and soft stop curves

Voltage ramp starting

Current limiting starting

Free parking

Timed soft parking

Expanded input and output options

Remote control input

Relay output

RS485 communication output

Display feedback data

Expandable operation panel

English display

Customizable protection

Input phase loss

Output phase loss

Running overload

Starting overcurrent

Running overcurrentUnderioad

Meet the connection requirements

Star connection or internal delta connection

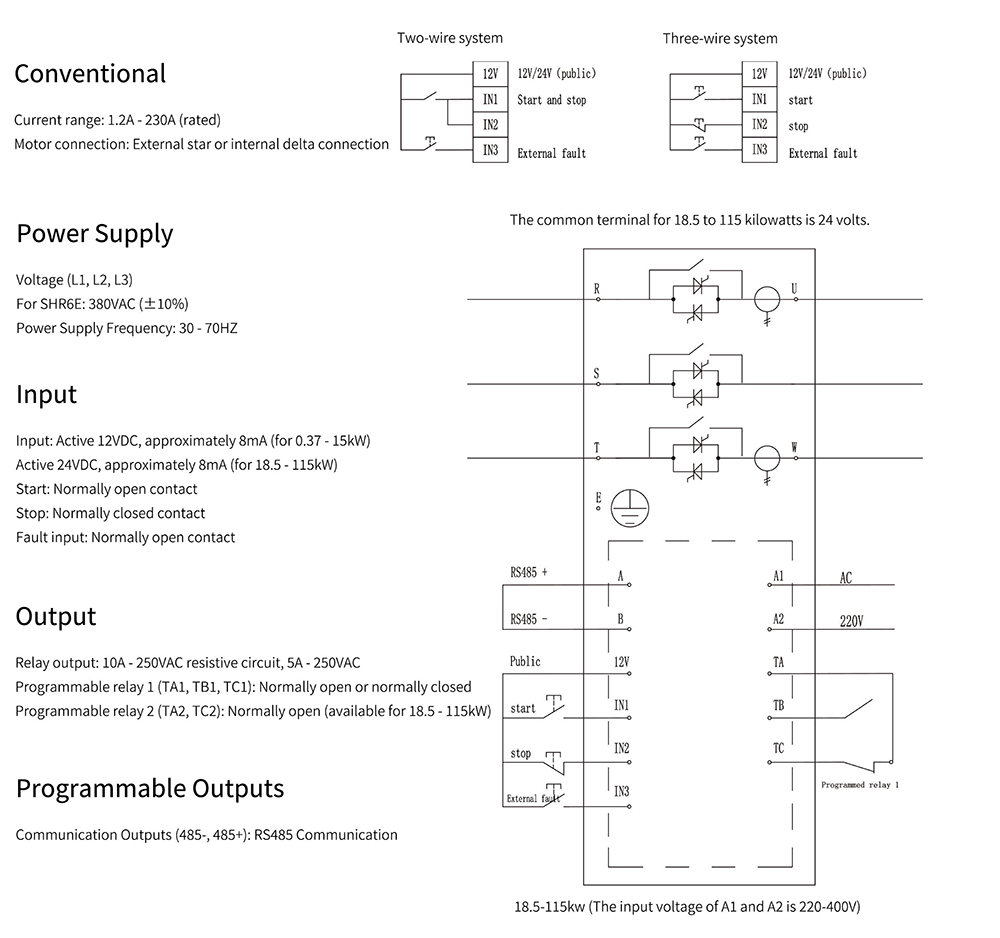

Wiring diagram

Motor connection

The soft tarter can be connected to the motor using the star connection method or the internal deta connection method (also known as thethree - wire connection method and the six- wire connection method). lfthe internal delta connection method is used, input the rated currentof the motor using parameter F0l.

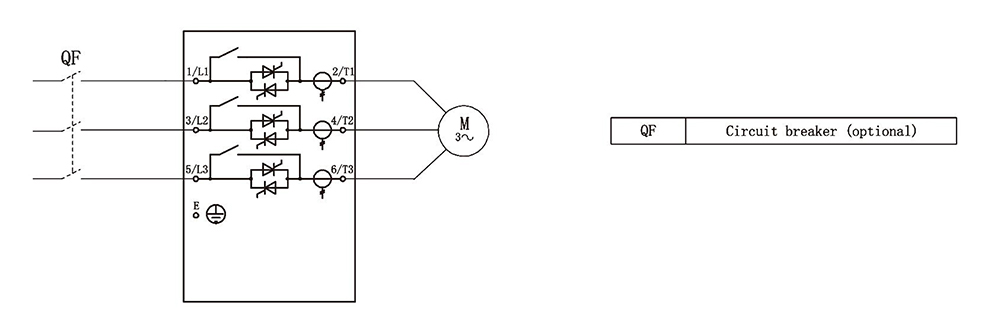

Star connection method, internal bypass

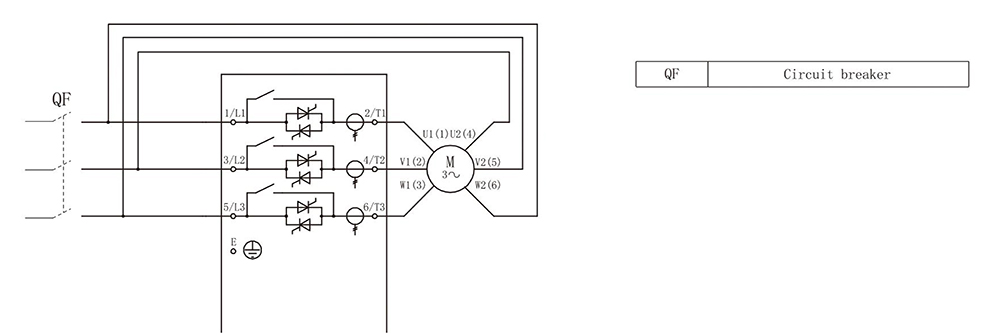

Delta connection method,internal bypass

Comparison among Soft Starter, Star-Delta Starter and Autotransformer Starter
