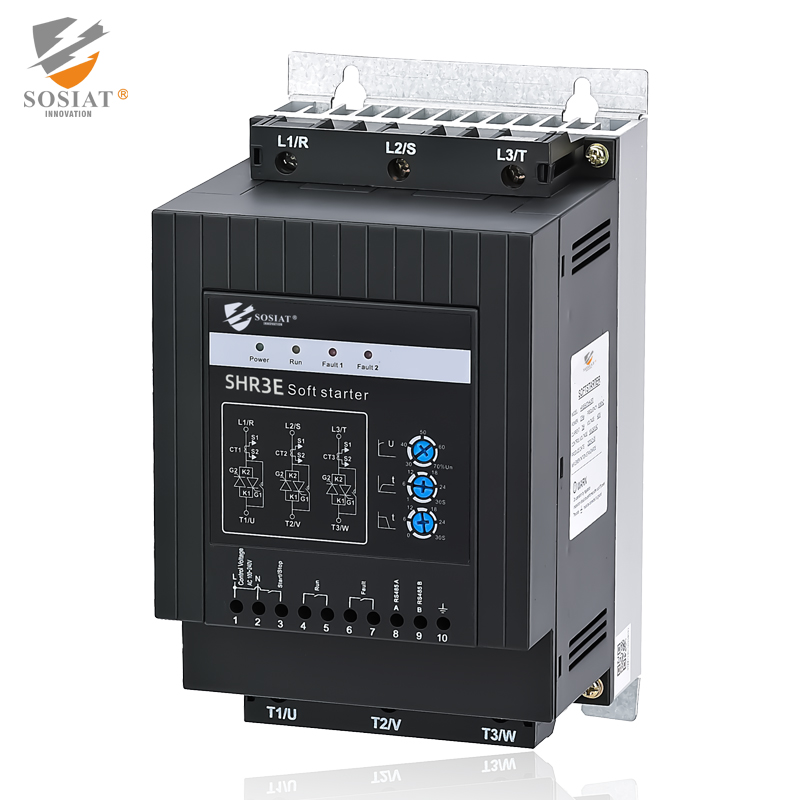

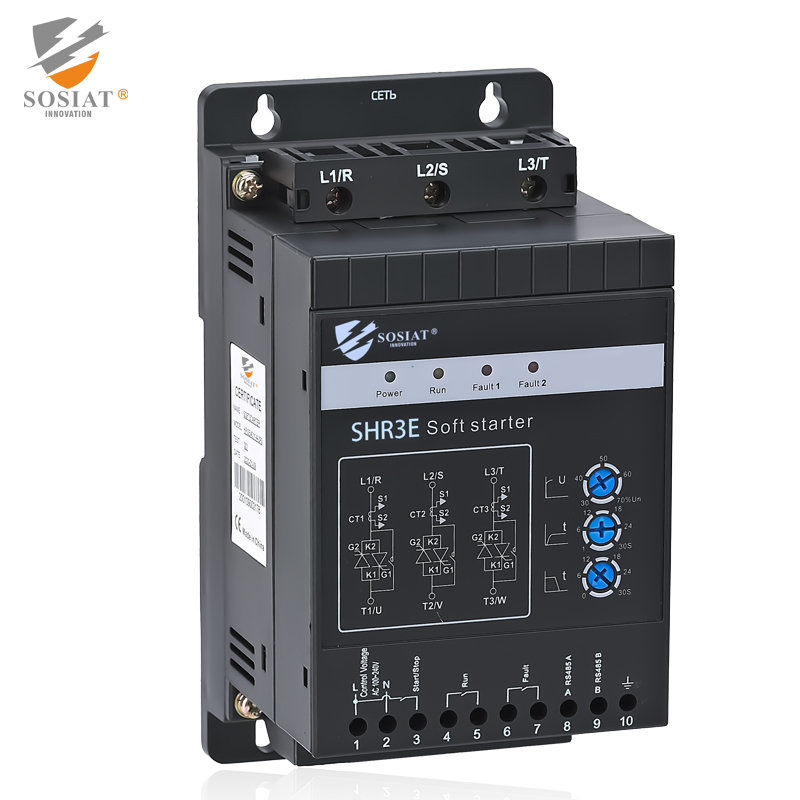

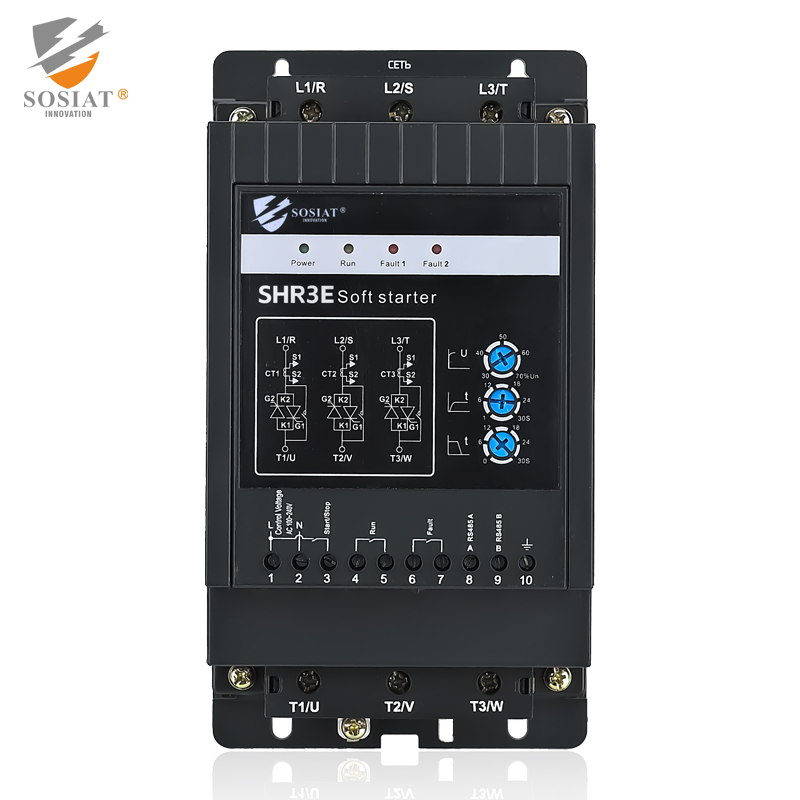

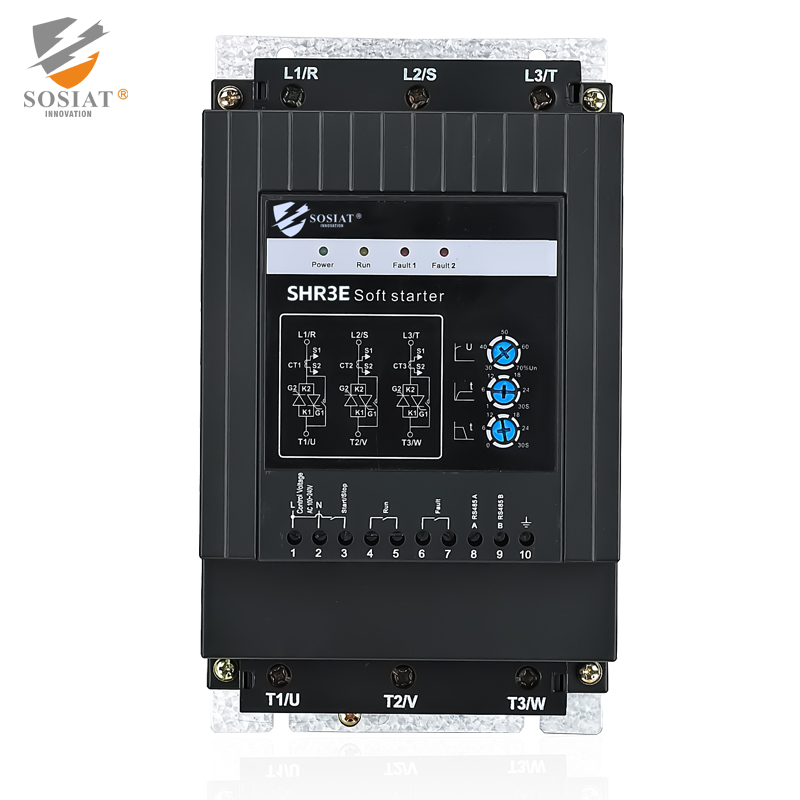

SHR3E Mini intelligentsoft starter
Product Profile
The SHR3E soft starter is a brand-new integrated inteligent motor control and protection product launched by shuoshi Electric, Combining richexperience in industry applications and a deep understanding of customers special application requirements, and based on years ot product
research and development, it has added new functions, improving the reliability and convenience of customer applications.

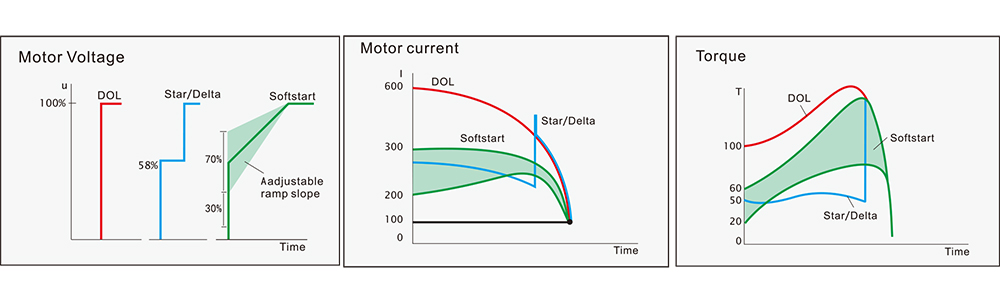

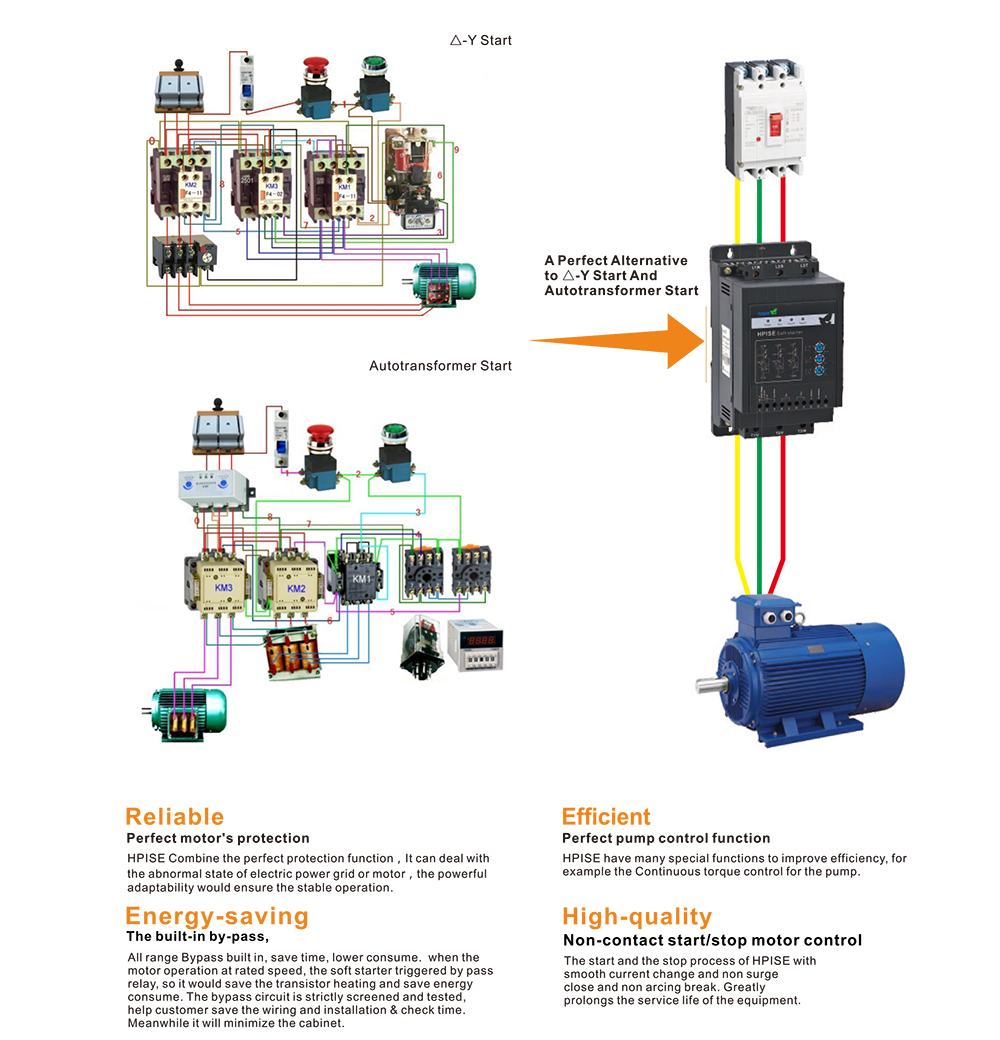

The soft starter is a digital motor soft starting product. It can control the motor to accelerate smoothly during the starting process and deceleratesmoothly during the stopping process, and it provides protection functions for both the motor and the produc itself it is the best upgradedalternative to traditionalstar-delta and reactor starters. t is suitable for asynchronous squirelcage motors with a power range of0.75-90kW.
The soft starter is equipped with an RS485 communication interface and supports the Modbus protocol, enabling comprehensive remote controland monitoring by a microcomputer. It can be widely used in industries such as textiles, metallurgy, agriculture, petroleum, chemical watertreatment, shipping, transportation, pharmaceuticals, food processing, mining, and mechanical equipment.
Function
The SHR3E series soft starters can directly set the parameters of starting time, stopping time and initial voltage through three potentiometersAll models in the SHR3E series soft starters have built - in bypass relays. Users do not need to additionally install external bypass contactors.The soft start adopts the voltage ramp starting method.
During the soft stop process,the output torque can be maintained (final torque control), thus effectively preventing the water hammer effectt can adont two connection methods, delta externalconnection and star externa connection.Real -time data (phase A current, phase B current, phase C curent, average current, etc,) can be read through communication.*NoteFault history records (10 fault history records, etc,) can be read through communication. *NoteStatistical data (cumulative number of starts, cumulative running time,cumulative number oftrips, etc,) can be read through communication.*Note
Protection functions of the SHR3E series soft starters:
1)Over-current protection
2)Over-current delay protection
3) Over - load protection (Over -load class: CLASS10A, CLASS10,CLASS20,CLASS30)
4)Three-phase currentimbalance protection
5)Phase loss/under-voltage protection
6)Phase sequence protection
7)SCR (Silicon -Controlled Rectifier) over-temperature protection
There is one start/stop control input point.
RS-485 communication bus interface.*Note
It is optional to have a built -in start/stop control switch.*Note
There are two relay outputs (running relay and fault relay).
*Note 1: lt is an optional accessory,. This function can only be used when the Rs -485 communication bus interface (Modbus RTU protocol is selected
*Note 2: lt is an optional accessory. This function can only be used when the buit -in start/stop control switch is selected.
Features
- Three-phase control;
- Operating voltage: 200/400/500VAC;
- Wide range of control voltage: 100~240VAC 50/60Hz or 24VDC;
- SLR rated operating current: 1.5~150A;
- The control board is added with a protective coating;
- Direct parameter setting via potentiometers makes the setting and operation simpler and more convenient.All series have built-in bypass, which reduces energy consumption and is easy to install;
- Modbus RTU is optional for monitoring;
- Supports all mainstream communication protocols,
- Built-in motor protection function;
- Integrated structure design with a protection level of lP21:It can effectively resist dust, moisture and corrosive gases, significantly extending the service life.
Feature Description
| Input Voltage | 220/400/500VAC 50/60Hz |
|
Control Source Voltage |
100~240VAC or 24VDC 50/60Hz |
| Current class | 1.5……150A |
| Initial Voltage | 30%~70% |
| Start Slope | 1~30Sec |
| Stop Slope | 0~30Sec |
| Overload | 3 x le for 7 Sec |
| Valid for 50 % on time and 50 % off time. | |
| Times of start per hour | <5,5-10 (light load or no-load) |
| Overload grade | 10A |
|
Operation Environmental temperature |
0℃to+50℃(32℉to122℉) |
| Store temperature | -40℃to+70℃(-40℉to158℉) |
| Maximum altitude | 1000m (3280ft) |
| Ingress Protection grade | IP21 |
Note:
1. Rated voltage ofthe main power supply: 22:220V; 40:400V; 50: 500V;
2. Rated current: 1.5~150A;
3.Control power supply voltage: A: 100~240VAC; B: 24VDC;
4. Control mode of the soft starter: 3P3: Three-phase three-control; 1P1: Single-phase single-control.
Internal control form of the soft starter

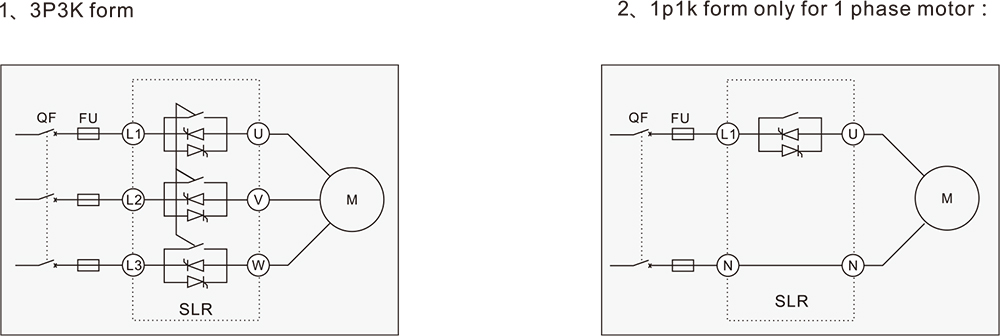

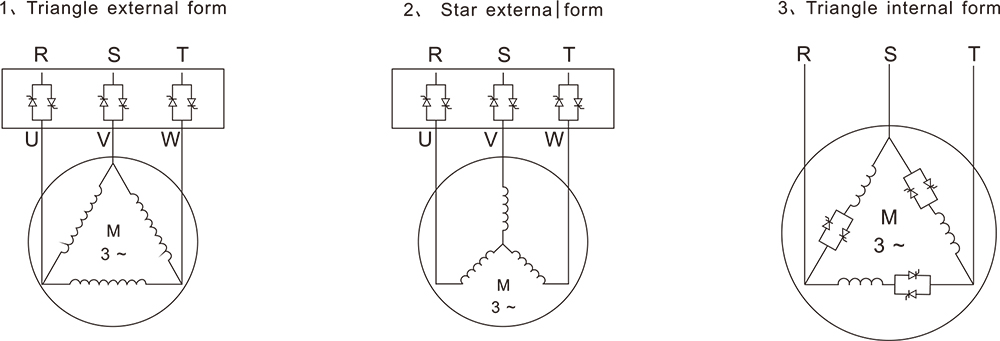

Application internal & External connection
Product Selection
| Model | Motor power rating |
SLR Rated operational current |
Structure | Weight | ||
|
220V Pe/kW |
400V Pe/kW |
500V Pe/kW |
le A |
F | kg | |
| SHR3EXX1T5-X-3P3 | 0.37 | 0.75 | 1.1 | 1.5 | A | 1 |
| SHR3EXX2T2-X-3P3 | 0.55 | 1.1 | 1.5 | 2.2 | A | 1 |
| SHR3EXX03-X-3P3 | 0.75 | 1.5 | 2.2 | 3 | A | 1 |
| SHR3EXX4T5-X-3P3 | 1.1 | 2.2 | 3.7 | 4.5 | A | 1 |
| SHR3EXX7T5-X-3P3 | 1.5 | 3.7 | 5.5 | 7.5 | A | 1 |
| SHR3EXX11-X-3P3 | 2.2 | 5.5 | 7.5 | 11 | A | 1 |
| SHR3EXX 15-X-3P3 | 3.7 | 7.5 | 11 | 15 | B | 1.4 |
| SHR3EXX22-X-3P3 | 5.5 | 11 | 15 | 22 | B | 1.4 |
| SHR3EXX30-X-3P3 | 7.5 | 15 | 18.5 | 30 | C | 2.4 |
| SHR3EXX37-X-3P3 | 11 | 18.5 | 22 | 37 | C | 2.4 |
| SHR3EXX45-X-3P3 | 15 | 22 | 30 | 45 | C | 2.4 |
| SHR3EXX60-X-3P3 | 18.5 | 30 | 37 | 60 | C | 2.4 |
| SHR3EXX75-X-3P3 | 22 | 37 | 45 | 75 | C | 2.4 |
| SHR3EXX90-X-3P3 | 25 | 45 | 55 | 90 | D | 5 |
| SHR3EXX110-X-3P3 | 30 | 55 | 75 | 110 | D | 5.2 |
| SHR3EXX150-X-3P3 | 37 | 75 | 90 | 150 | D | 5.2 |
Note:
1、1T5 means 1.5A,4T5 means 4.5A,7T5 means 7.5Ain Rated current.
2、Other voltage classes can be made to order.
| Model | Motor power rating | SLR Rated operational current |
Structure | Weight | |
|
220V Pe/kW |
400V Pe/kW |
le A |
F | kg | |
| SHR3EXX02-X-1P1 | 0.37 | 0.55 | 2 | A | 1 |
| SHR3EXX03-X-1P1 | 0.55 | 0.75 | 3 | A | 1 |
| SHR3EXX04-X-1P1 | 0.75 | 1.1 | 4 | A | 1 |
| SHR3EXX06-X-1P1 | 1.1 | 1.5 | 6 | A | 1 |
| SHR3EXX09-X-1P1 | 1.5 | 2.2 | 9 | A | 1 |
| SHR3EXX12-X-1P1 | 2.2 | 3.7 | 12 | A | 1 |
| SHR3EXX20-X-1P1 | 3.7 | 5.5 | 20 | C | 2.4 |
| SHR3EXX30-X-1P1 | 5.5 | 7.5 | 30 | C | 2.4 |
| SHR3EXX37-X-1P1 | 7.5 | 11 | 45 | C | 2.4 |
In applications with conventional loads:
Such as water pumps, compressors, ventilation equipment, conveying equipment, etc.The SHR3E soft starter can be selected according to the rated power of the electric motor(Note: For heating equipment, the selection can be made according to the rated current.)
For applications with heavy loads:
such as centrifugal fans, mixers, grinders, blenders, or equipment that needs to befrequently started within a short period of time, SOSlCN recommends that you selecta soft starter one rating higher than the rated power of the electric motor.
Application Diagram
Parameters
| General | |
| Frequency | 50/60Hz±5Hz |
| Rated Main Voltage | 220-500±10% VAC(chose by customer); 400VAC±10%(acquiescent) |
| Control Source Voltage | 100-240VAC-15%+10% or 24VDC(chose by customer);100-240VAC±10%(acquiescent) |
| The motor adapted | Three-phase squirrel-cage induction motor |
| Times of start per hour | <5 at 400% FLA |
| Operating data | |
| Motor rated operational current | Motor full load current: 1.5-150A |
| Initial voltage | 30%~70% Un |
| Start Slope | 1-30 seconds |
| Stop Slope | 0-30 seconds |
| Motor protections | |
| Over current | During start , operation , stop , output current over limit |
| Unbalanced Current | Output current unbalanced level beyond the setting |
| I²t overload | May set to 10A,10… overload protection base on the setting to delay protection stop |
| Missing phase/ No voltage | Stop the softstarter when 1 or 2 phases failed Or no voltage input |
| Thyristor(SCR) overtemp | Stop the softstarter when the radiator temperature rises above 80℃ |
| Phase sequence | Forbid starting when the input phase sequence is wrong ( If the function is unnecessary, please tell us before ordering) |
| Under current | Stop the softstarter when the current lower than under current protection value |
| Max start time | Stop the softstarter when the time of starting process exceeds the max start time |
Rapid fuse
| Model | SCRI²T(A²S) | Fuse rating |
| SHR3EXX1T5-X-3P3 | 70 | 5A |
| SHR3EXX2T2-X-3P3 | 150 | 10A |
| SHR3EXX03-X-3P3 | 270 | 10A |
| SHR3EXX4T5-X-3P3 | 610 | 16A |
| SHR3EXX7T5-X-3P3 | 1700 | 25A |
| SHR3EXX 11-X-3P3 | 3630 | 32A |
| SHR3EXX 15-X-3P3 | 5000 | 40A |
| SHR3EXX22-X-3P3 | 7500 | 50A |
| SHR3EXX30-X-3P3 | 10000 | 63A |
| SHR3EXX37-X-3P3 | 11000 | 100A |
| SHR3EXX45-X-3P3 | 12000 | 160A |
| SHR3EXX60-X-3P3 | 15000 | 200A |
| SHR3EXX75-X-3P3 | 18000 | 250A |
| SHR3EXX90-X-3P3 | 40000 | 315A |
| SHR3EXX110-X-3P3 | 60000 | 315A |
| SHR3EXX150-X-3P3 | 100000 | 400A |

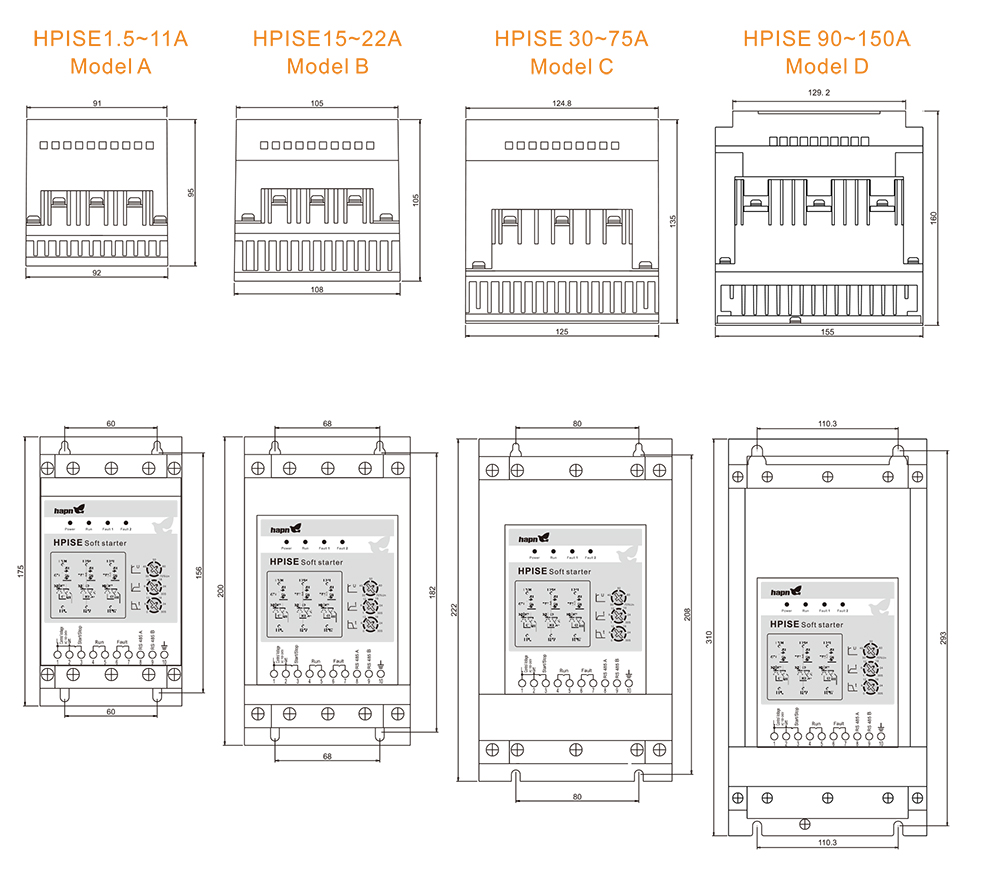

Product Structure Size

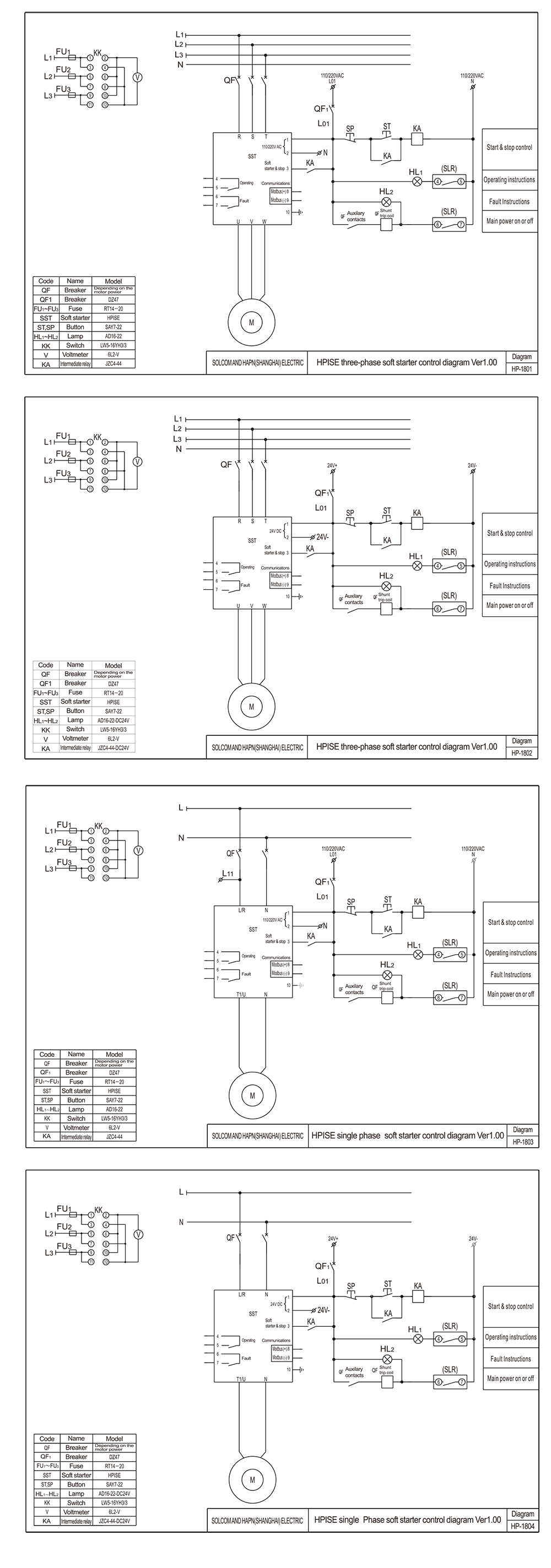

Schematic Diagram
